Check Valve

Check Valves are designed to automatically prevent reverse flow in pipelines, ensuring smooth fluid movement while protecting pumps, compressors, and other critical equipment from backflow damage. These valves operate automatically without manual intervention, making them an efficient and dependable solution for industrial process systems.

At Smart Valves, our Check Valves are manufactured using premium-quality materials and advanced engineering techniques to deliver exceptional durability, leak-tight performance, and long service life under demanding operating conditions.

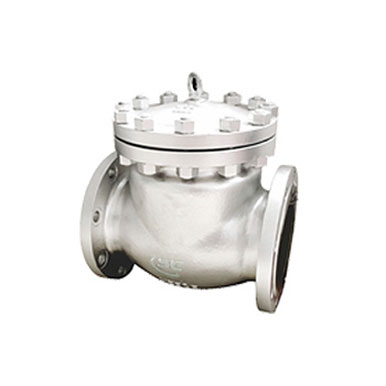

  • Type: Swing Check Valve
  • Size 15 mm to 300 mm
  • Rating 150# & 300#
  • Body MOC Cast Steel, stainless steel & special alloy.
  • Sleeve MOC 13%Cr, SS 304 , SS 316
  • End Connection Flanged End
  • Valve Design BS 1414 / API 600
  • Pressure Testing Standard API 598

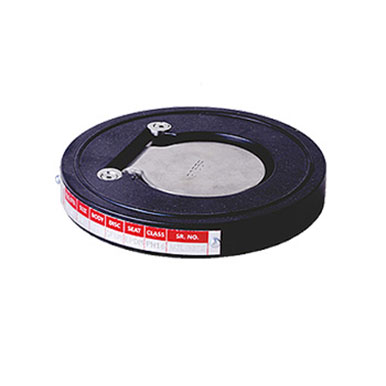

  • Type: Wafer Type Check Valve
  • Size 40 mm to 500 mm
  • Rating 150#
  • Body MOC Cast Steel, stainless steel & special alloy.
  • Seat & Disc MOC 13%Cr, SS 304 , SS 316
  • End Connection Wafer Ends, Lugs End & Flanged Ends.
  • Design Standard API 594
  • Pressure Testing Standard ISO 5208 / API 598
  • Type: Disc Type Check Valve
  • Size 25 mm to 200 mm
  • Rating 150#
  • Body MOC Cast Steel, stainless steel & special alloy.
  • Disc & Spring MOC SS 304 , SS 316 etc.
  • Pressure Testing Standard ISO 5208 / API 598
