Globe 2 Way Valve

Our Products

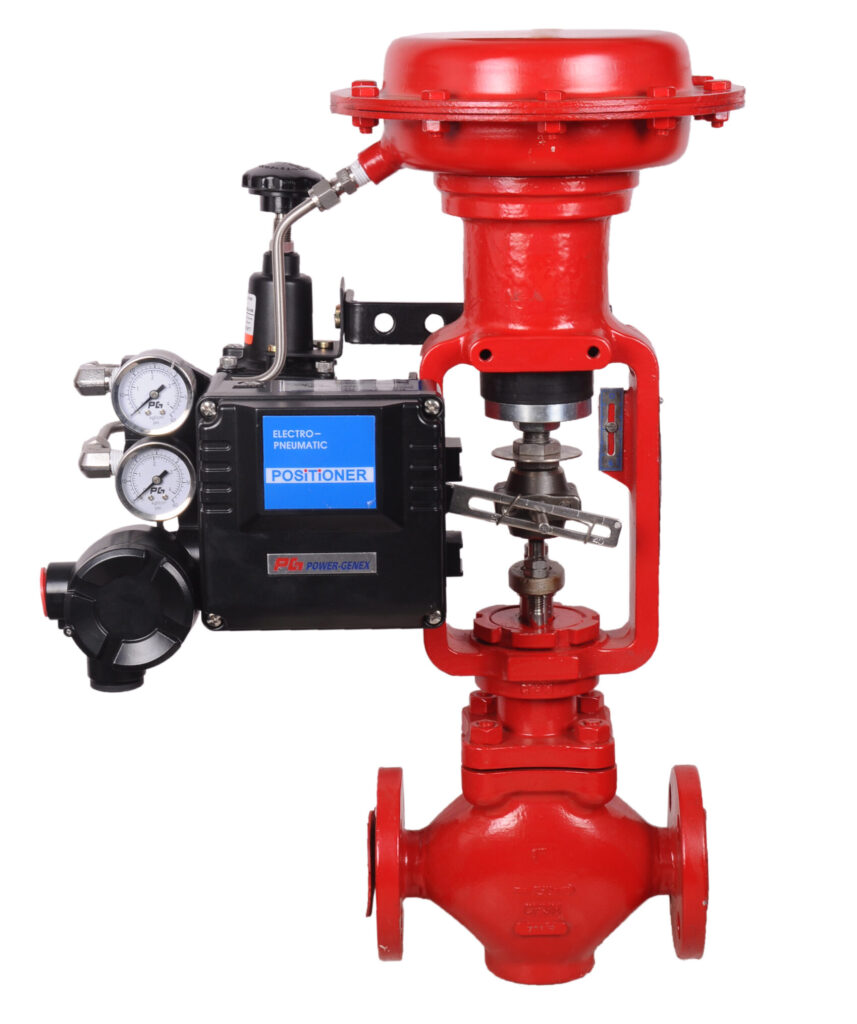

Globe 2 Way Valve

The Globe 2 Way Valve is engineered to provide precise flow regulation, reliable shut-off, and long-lasting performance in demanding industrial environments. Designed with a linear motion mechanism, it delivers accurate throttling and excellent sealing performance, making it an ideal choice for applications requiring controlled fluid flow.

Manufactured from premium-quality materials and built to international standards, our Globe 2 Way Valves are suitable for handling steam, water, oil, gas, chemicals, and other process media. Available in a wide range of sizes, pressure ratings, end connections, and body materials, these valves ensure dependable operation, minimal maintenance, and extended service life across diverse industries.

Contact +91 9619251168
  • Design ASME B16.34
  • Valve Size 15 to 450 mm (1/2" to 18")
  • Rating ANSI 150 to 2500 or Equivalents to BS, DIN, etc.
  • Face to Face ISA S.75.03 up to 600# & ISA S.75.16 (900# and above)
  • End Connection Flanged, Butt Weld, Screwed, Socket Weld
  • Body Material Carbon Steel, Chrome-Moly Steel, Stainless Steel, Monel, Alloy 20, Hastelloy B/C, Duplex Stainless Steel, Aluminium Bronze, PP, PTFE, etc.
  • Bonnet Standard, Extended
  • Gland Packing Grafoil / PTFE V Rings, Low Emission
  • Trim Designs Top Guided Contoured, Splined Micro Flow, V-Ported (Balanced / Unbalanced), Low Noise up to 4 Stage
  • Trim Materials Stainless Steel, Alloy 20, Monel, Duplex Stainless Steel, 13% Chrome Steel, Hastelloy B/C, Stellite (Alloy 6)
  • Characteristics Equal Percentage, Linear & Quick Opening
  • Seat Leakage ANSI/FCI 70-2 Class III, IV, V & VI. Metal-to-Metal Class IV (<0.01% Rated Cv). Metal-to-Soft Seat: Bubble Tight (Zero Leakage).
  • Actuator Type Diaphragm, Piston or Electric
  • Actuator Action Direct / Reverse Acting
  • Diaphragm Nitrile / Neoprene
  • Spring Ranges 3–15 PSIG (0.2–1.0 Kg/cm²) & 6–30 PSIG (0.4–2.0 Kg/cm²)
  • Air Supply 20–35 PSIG (1.4–2.5 Kg/cm²)
  • Air Connection 1/4" or 1/2" NPT
  • Accessories Valve Positioner (Pneumatic, Electro-Pneumatic, Smart Positioner), Airset, Solenoid Valve, Air Lock, Volume Booster, Position Transmitter, Limit / Proximity Switches, Top or Side Mounted Handwheel, Limit Stops, Removable Blind Head, Steam Jacketing, etc.
