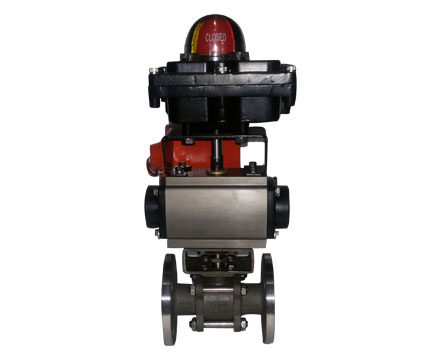

Pneumatically Actuated Ball Valve
Pneumatically Actuated Ball Valves are designed to deliver fast, reliable, and efficient automated flow control in industrial piping systems. Equipped with a high-performance pneumatic actuator, these valves provide quick quarter-turn operation, precise shut-off, and dependable sealing, making them ideal for remote-controlled and automated process applications.
At Smart Valves, our Pneumatically Actuated Ball Valves are manufactured using premium-quality materials and precision engineering to ensure superior durability, corrosion resistance, and long-lasting performance in demanding industrial environments.
- Type: 1 Piece, 2 Piece & 3 Piece design
- Size 15 mm to 200 mm
- Rating 150# & 300#
- Body MOC Cast Iron, Cast Steel, stainless steel, PTFE & special alloy.
- Characteristics On-Off, Throtting
- End Connection Flanged End, Socket Weld, Triclover Ends, Screwed Ends
- Valve Design BS 5351 / ANSI - B16.34
- Pressure Testing Standard API 598
- Opration Lever, Gear, Pneumatic & Electrical Operated.
- Ball Valve Body Features
- Minimum Body Cavity to Enhances performance in many services by minimizing media retention and process contamination
- Larger stem diameter. Blowout proof stem.
- Smooth Mirror finishes ball.
- Special seating arrangement for Low Torque
